Frequently Asked Questions

Q: What changed with the new Gatorack design?A: We updated our rack lineup to improve compatibility across a wider variety of toy haulers and RVs while making installation simpler. Here are the key improvements:

  • Lower Profile & Less Clearance Needed: We reduced the total height of the rack from 17" down to 12". This drops the required mounting clearance from 18" to just 14", allowing our racks to fit tighter spaces and a broader range of setups.

  • Simplified Universal Mounting Bracket: Instead of multiple mounting bracket choices, we streamlined the system into one, highly adaptable universal bracket. It’s easier to install and fits more applications right out of the box.

  • More Height Adjustments: We added additional height adjustment positions to both the Lil-Gator and the RV Adapter Mount, giving you finer control to dial in the perfect height for your build.

Q: When do these changes take effect?

A: All orders placed after August 17, 2026 will automatically ship with the new redesigned model and updated mounting system.

"We want to make sure your Tailgator fits perfectly! Please double-check your trailer’s measurements and hinge style against our requirements before completing your purchase."

YOU WILL NEED 14” FROM THE BOTTOM OF YOUR DOOR T0 THE BOTTOM OF YOUR LATCH

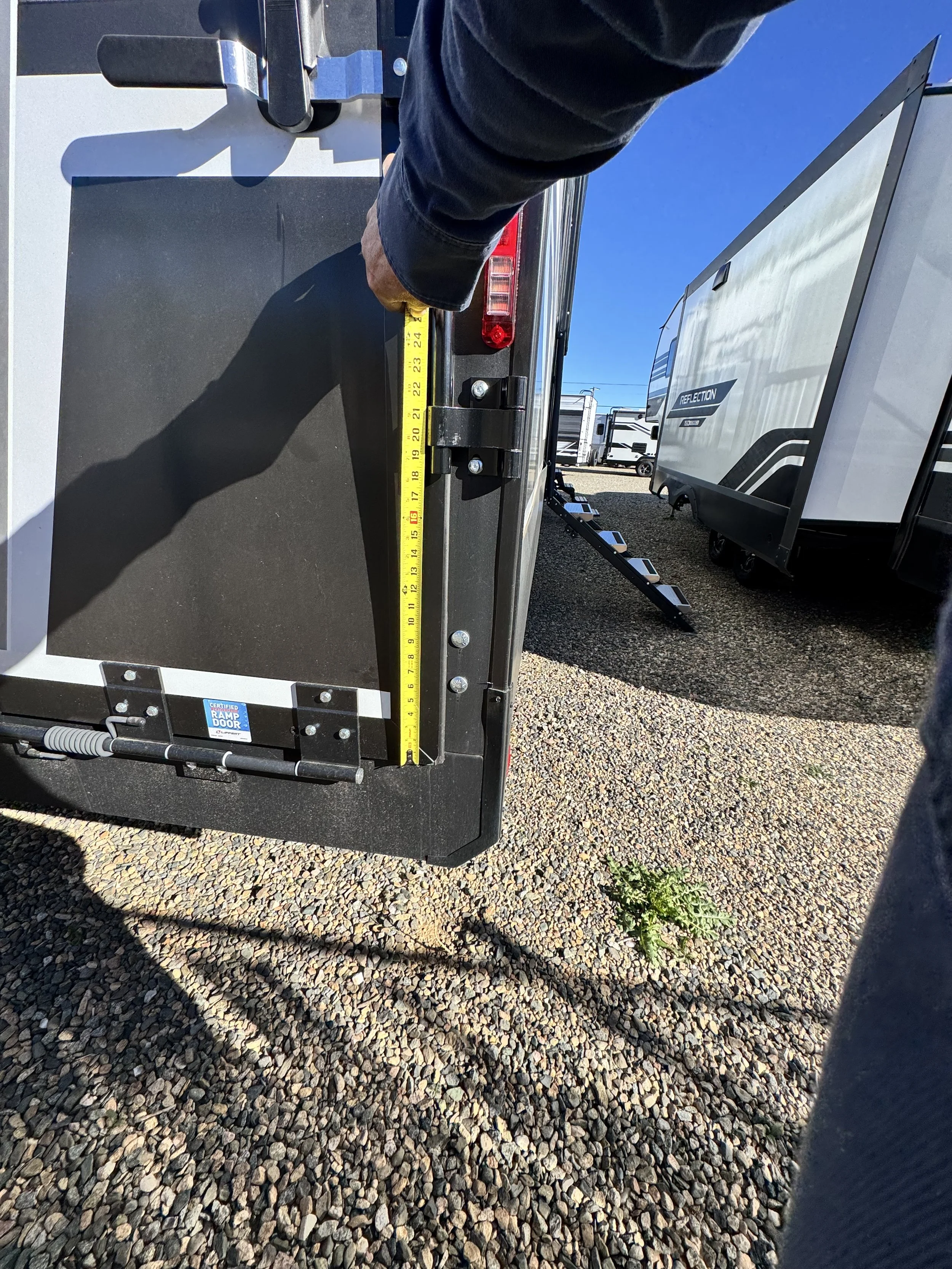

A person measuring the height of a RV trailer's entrance with a yellow tape measure. The trailer is on a gravel lot, and other RV trailers are visible in the background.
A person measuring the height of a RV trailer's entrance with a yellow tape measure. The trailer is on a gravel lot, and other RV trailers are visible in the background.

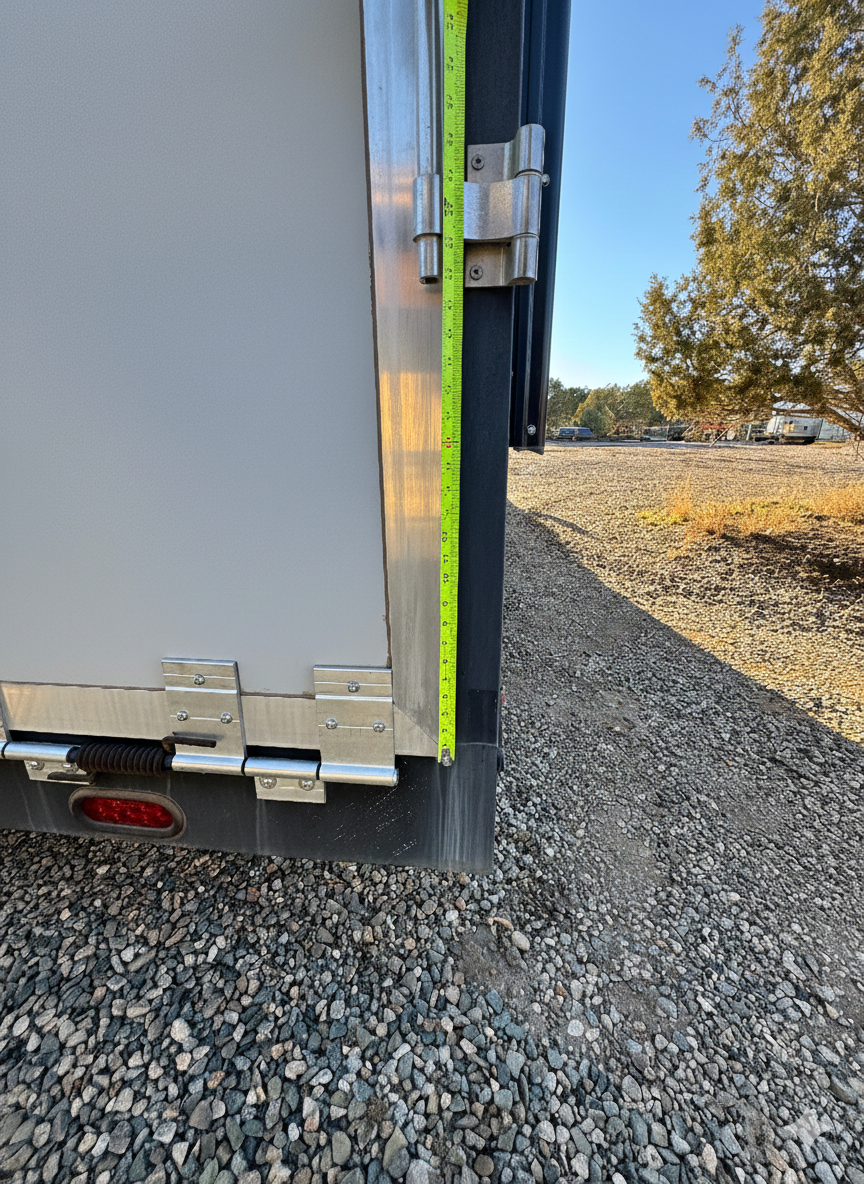

The image shows the side of a truck with a tape measure attached vertically, measuring approximately 30 inches in height, placed in an outdoor area on a gravel surface with trees and a clear blue sky in the background.
The image shows the side of a truck with a tape measure attached vertically, measuring approximately 30 inches in height, placed in an outdoor area on a gravel surface with trees and a clear blue sky in the background.

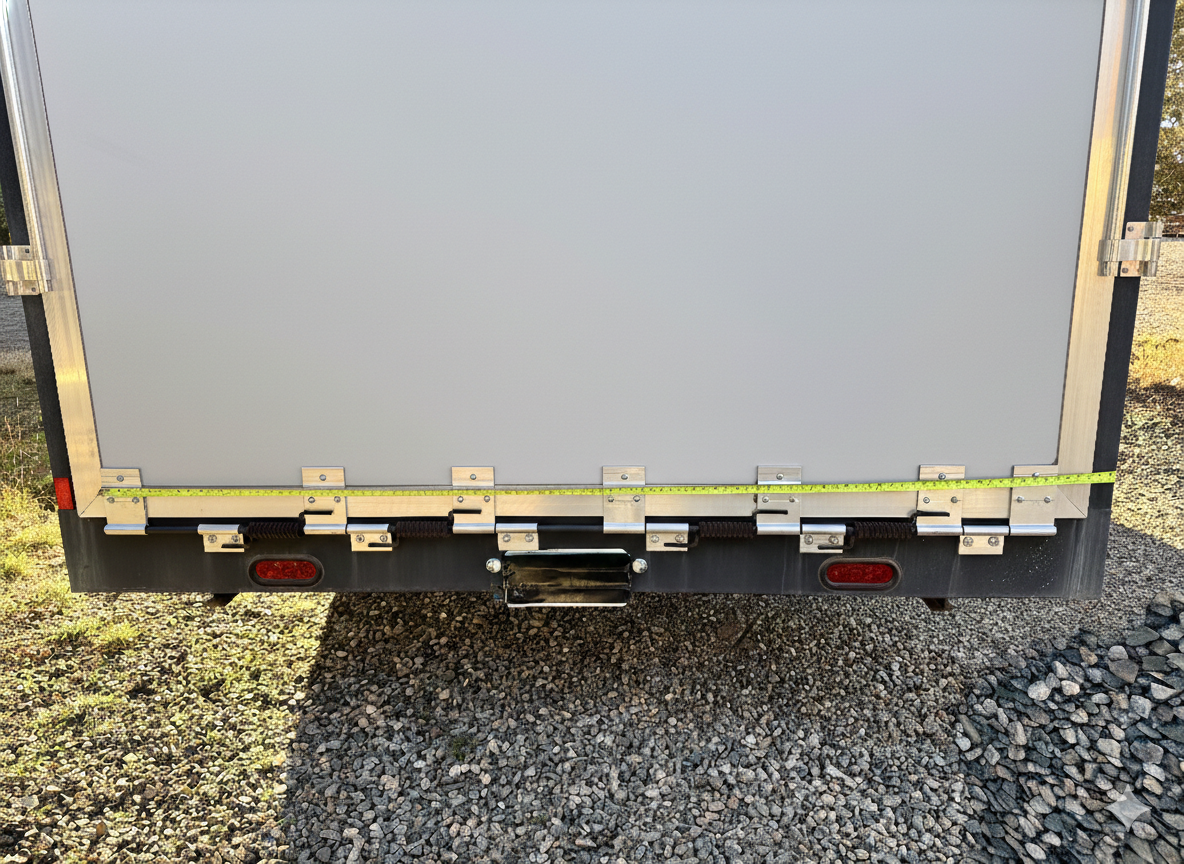

Rear view of a closed cargo trailer with a measuring tape stretched across the bottom, sitting on gravel.
Rear view of a closed cargo trailer with a measuring tape stretched across the bottom, sitting on gravel.

YOU WILL NEED 89”-95” FROM YOUR FURTHEST LEFT HINGE (DRIVER SIDE) TO THE RIGHT SIDE TRAILER EDGE (PASS SIDE)

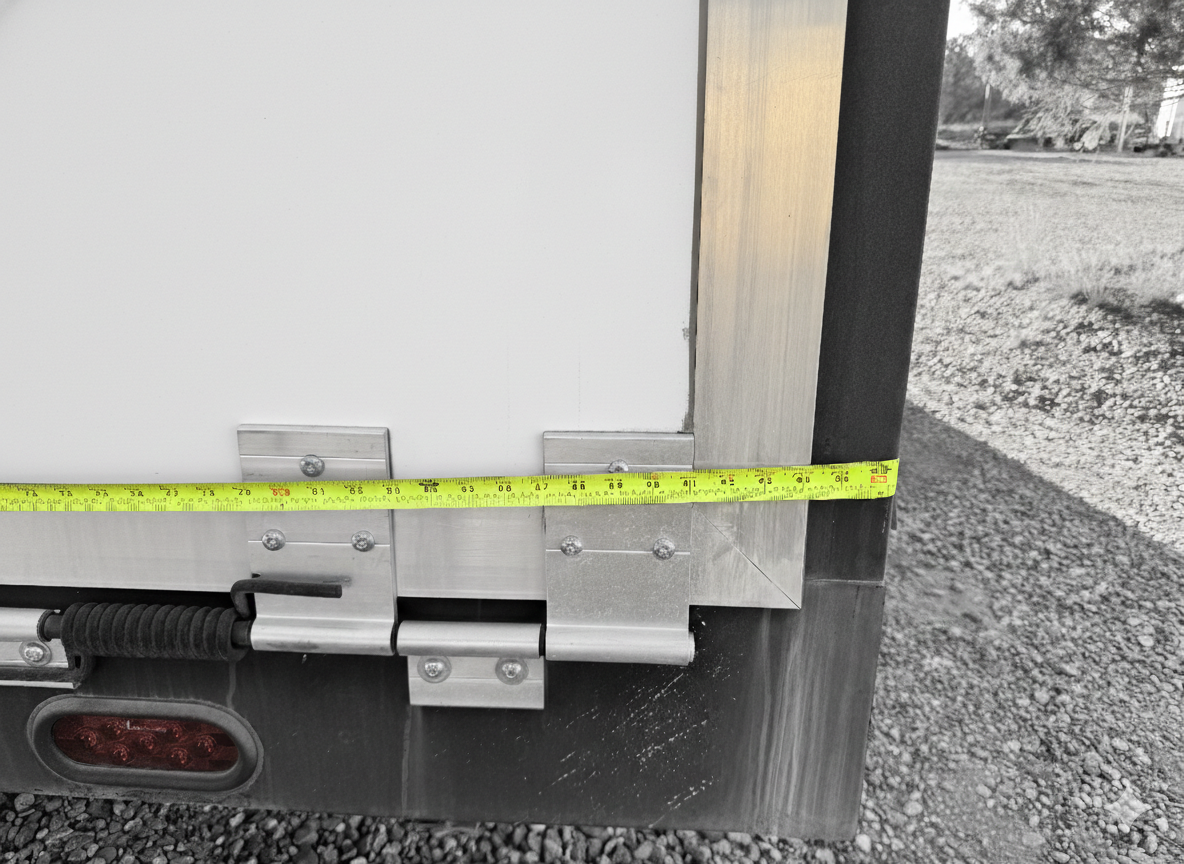

Close-up of a metal hinge and a measuring tape stretched across the side of a white refrigerated or cooled truck in an outdoor gravel lot.
Close-up of a metal hinge and a measuring tape stretched across the side of a white refrigerated or cooled truck in an outdoor gravel lot.

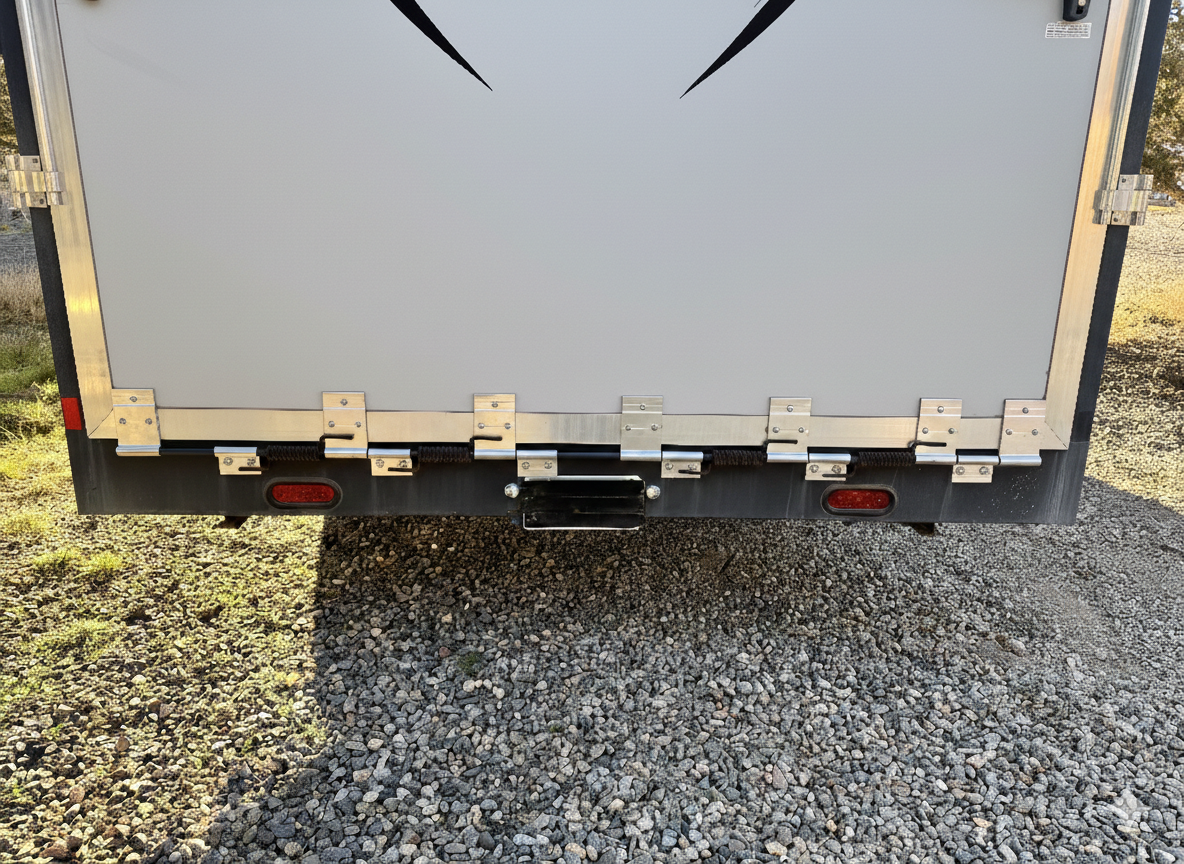

Rear view of a light gray metal trailer with lockable doors, situated on gravel ground, showing tail lights and securing hardware.

HINGE TYPE THAT IS COMPATABE WITH THE TAILGATOR LATCH

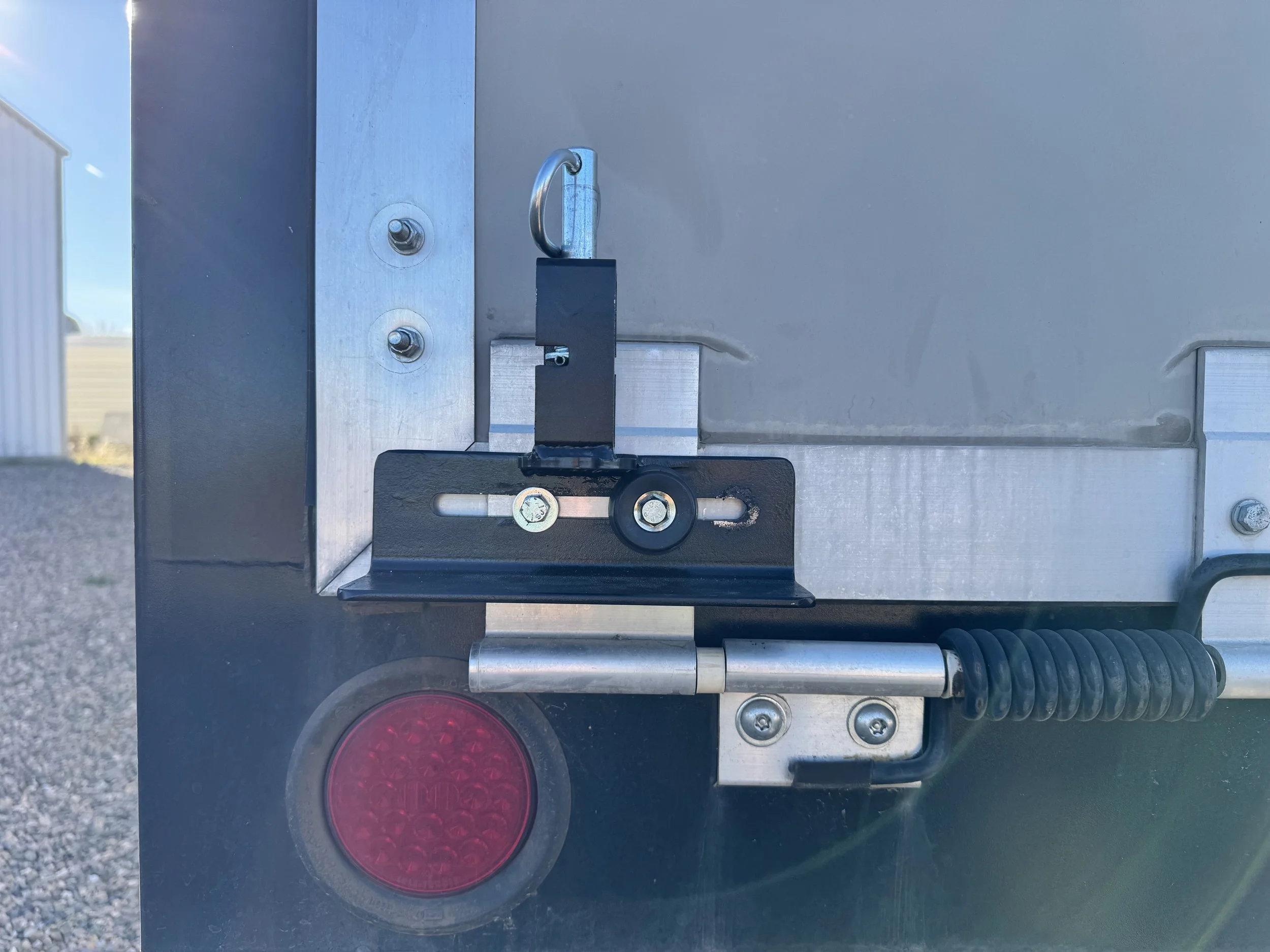

Close-up of a metal lock and latch mechanism on a trailer or container door, with visible bolts, a red reflector below, and a coiled black spring.

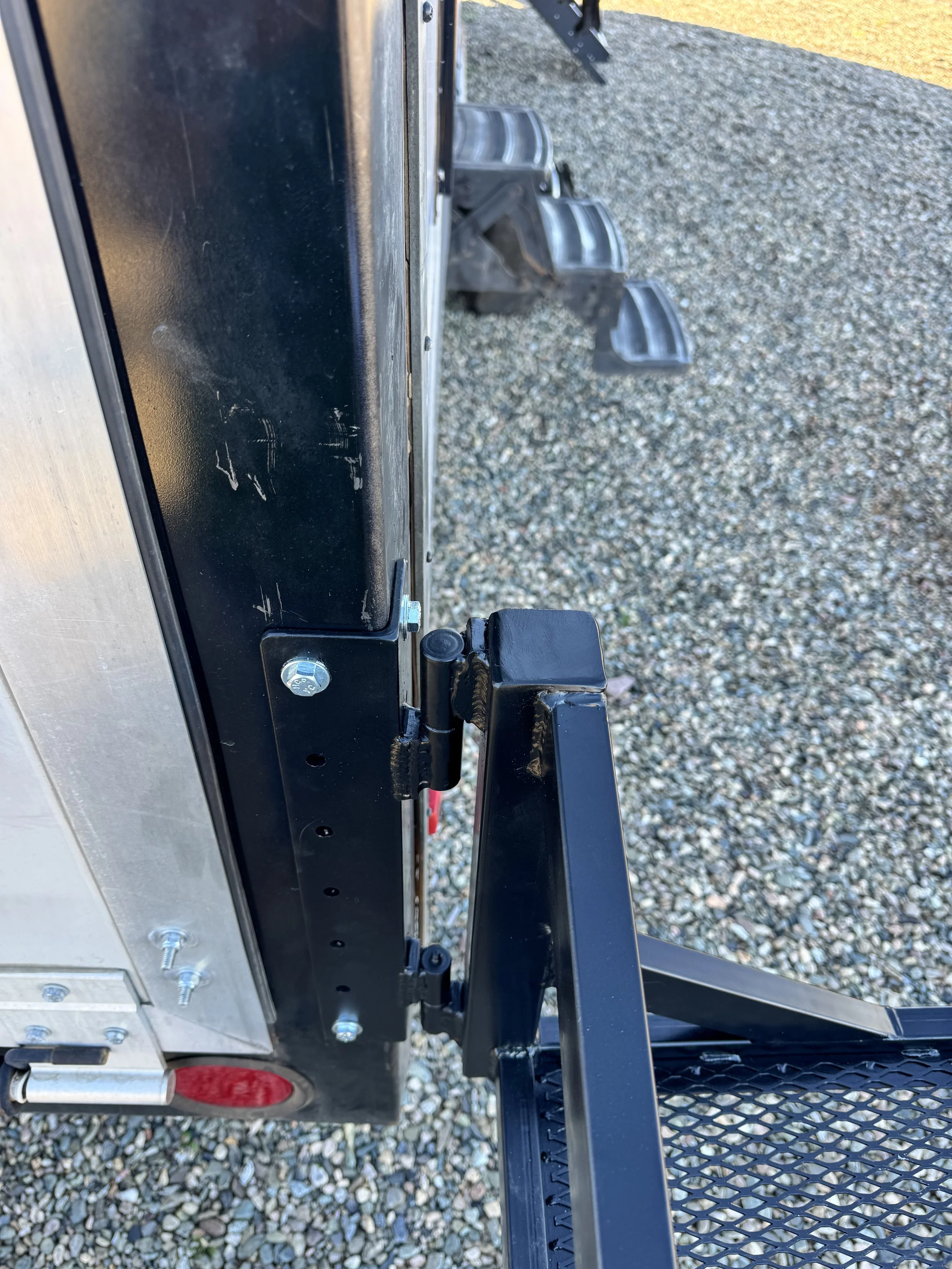

LATCH MOUNTING TO THE FURTHEST LEFT HINGE (ON BACK DOOR/RAMP)

CORNER BRACKET FOR TAIL-GATOR & LIL-GATOR

  • Our rack is designed to fit a standard trailer rear gate. It will work if your setup has a standard door hinge type and at least 14 inches of clearance from the bottom of the door to the bottom of the door latch. And 89”-95” from the edge of your trailer to the far left henge (center of henge).

  • The rack includes a complete installation kit for your convenience. It secures directly to the metal frame surrounding the rear door. We provide 5/16" bolts with a rivnut kit. Additionally, the latch is designed to mount seamlessly to your door’s existing hinges.

  • The Tailgator was designed to hold a 2 or 3 burner bbq grill (camp chef)

    The standard rack design accommodates a maximum grill size of 40” x 17”. If your grill fits within those dimensions, the Tailgator system will work for you.

  • The Lil-Gator is specifically engineered for RVs and campers featuring a 4” square tube bumper.

  • "Our rack system features a heavy-duty, bolt-on bracket design specifically engineered to securely mount to any standard 4-inch square tube bumper."

  • "Our product features a multi-fit design, ensuring compatibility with a wide range of BBQ models so you can use it with your existing grill."

  • Grill Configurations (as you are grilling at the rack)

    • Left-Side Grill: (outside away from the trailer) The grill is on your left, and the prep table/workspace is on your right

  • Yes, Just email us for more information and we will get you a code

    Thank You For All That You Do.

NOUNTING OF THE TAIL-GATOR ON TOYHAULER
